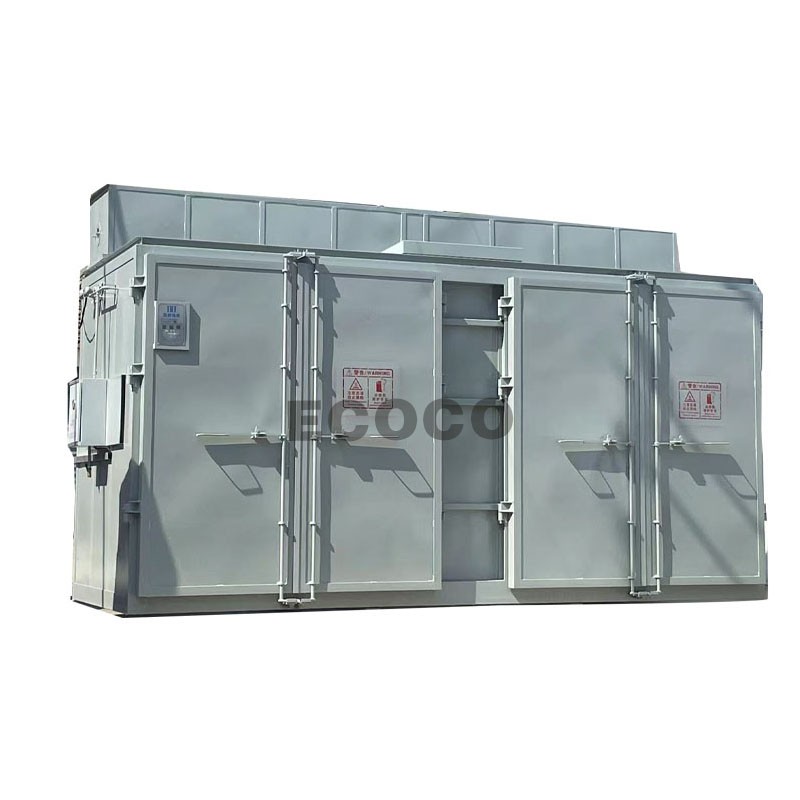

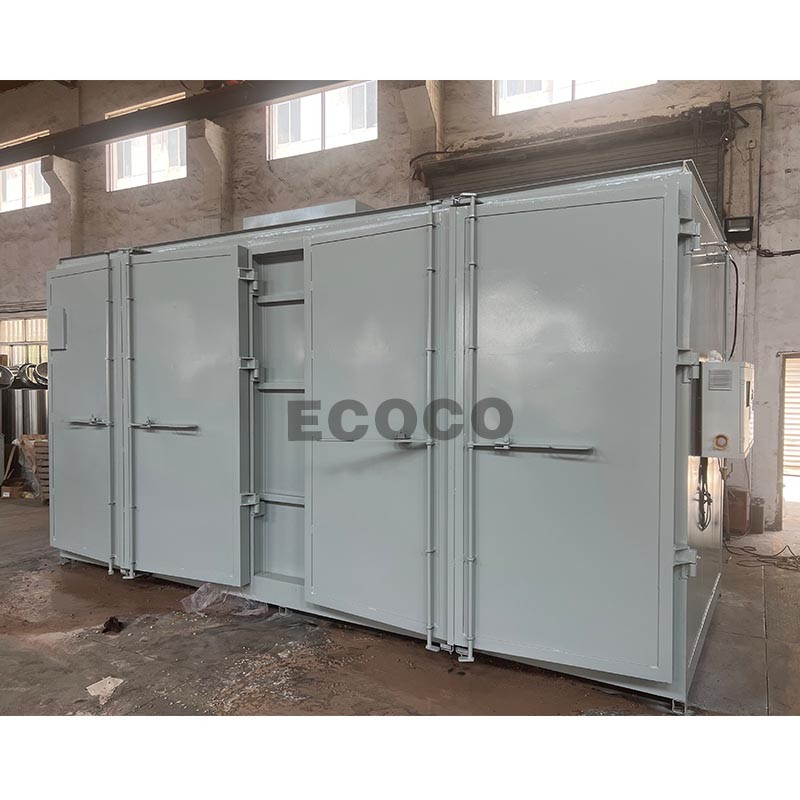

BLG-24 Burn Off Oven

Model: BLG-24
Capacity: 24 m³
Inner size: L8500xW1600xH1800mm
Fuel: natural gas
Process capacity: 80kg/h coating

EMAIL

Description

Model: BLG-24

burn off oven efficiently strip off powder coating, paint from jigs, hangers and racks for suspending items on the conveyor line during painting.


Features

  • Effective heating system design to highly decompose the organic material.

  • Independent second combustion chamber design to remove the smoke completely.

  • User-friendly – easy operation and maintenance.

  • Various options for different application.

  • Multiple security protection – self check to stop the oven automatically

  • Advanced touch-screen PLC control system

Applications

  • Paint & Powder Coating stripping (Racks, Jigs, Fixtures, Paint hooks and hangers)

  • Plastics stripping (Moulds, extrusion dies, screws, nozzles, extruders, hot runners, breaker plates)

  • Auto-Parts and Engine Rebuilding

  • Motor rebuilding

  • Oil removal from scrap metal

Specifications


Power220V, 50Hz, 0.7kw, Single phase
Coating Process Capacity
80 kg/h
Cycle Time120-180 min
Overall Dimension (L x W x H)9000mm x 2200mm x 2900mm
Inner Dimension (L x W x H)8500mm x 1600mm x 1800mm
Cart Dimension (L x W x H)8200mm x 1300mm x 500mm
Cart Loading Dimension (L x W x H)8200mm x 1300mm x 1300mm
Fuel
 Natural gas, LPG, LNG, Diesel oil
  Removable Organic Compound   Paint, power coating, plastic, resin, oil
  Primary Burner  Riello gas/light oil burner
  Afterburner  Riello gas/light oil burner
  Control Mode
  PLC
  Working Temperature
  0-480°C (adjustable)
 Second Combustion Chamber Temperature  700-900°C
  Fuel Consumption

  20-24 m³/h (for natural gas)

  14-18 kg/h (for LPG, LNG)
