Paint Stripping Pyrolysis Furnace

What are Paint Stripping Pyrolysis Furnace?

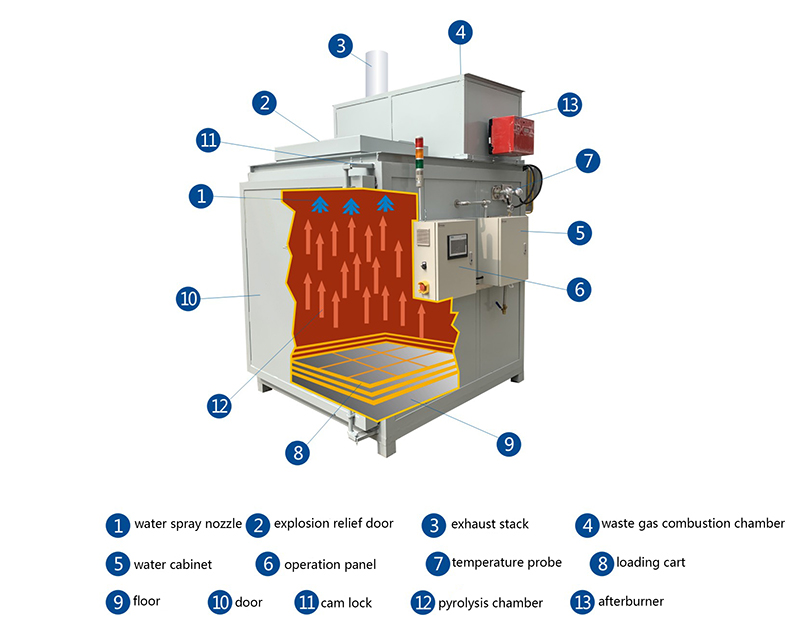

Stripping paint pyrolysis ovens, also called burn off ovens are widely used in the powder coatings, fibers, electric motors and plastics industry. The Stripping paint pyrolysis furnace has two relatively independent heating systems as well as temperature and smog control system. In the first heating system, the fixtures are heated to a set temperature from 250 to 420 celcuis degree without direct flame impingment. In this process, the organic coatings on the surface of fixtures are gradually decomposed into smoke and ash. The smoke generated by the first chamber into the second combustion chamber is fully burned at 600-800 celcuis degree, coverting into water vapor and air, which are discharged into the atmosphere by the exhaust stack.

Technical Parameter

Advantages

• Environmentally friendly

• Lower investment and usage cost

• Easy installation

• Factory price

• Low maintenance

• One touch start up system for easy operation

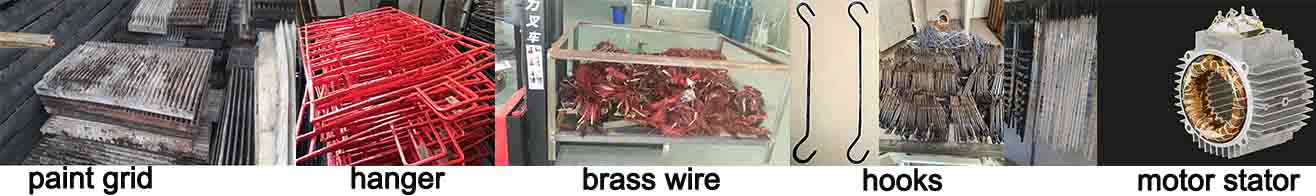

Recommended Applications

• Jig Stripping

• Stripping paint hooks

• Cleaning paint booth grids

• Recycling steel rejects such as radiators, wheels

• Removal of rubber from steel parts

• Removal of insulation from electric motor stators



Specifications

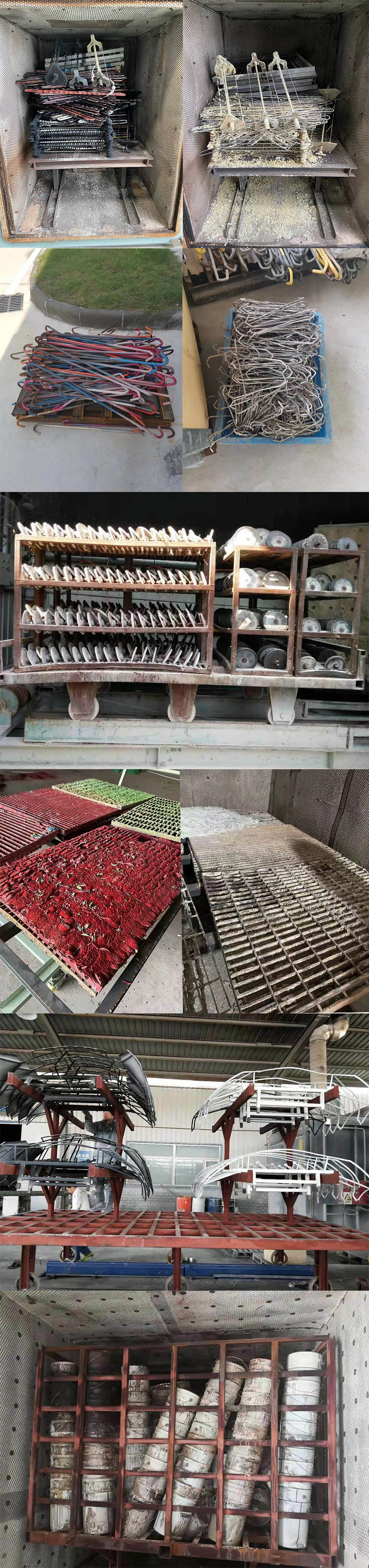

Parts before and after processing by stripping paint pyrolysis furnaces

The coating on the surface of metal parts turns into ash after processed by high temperature in one cycle. Some ash falls on the bottom of the furnace.The remaining ash on the surface of metal parts can be cleaned by tapping lightly or with a water gun.
